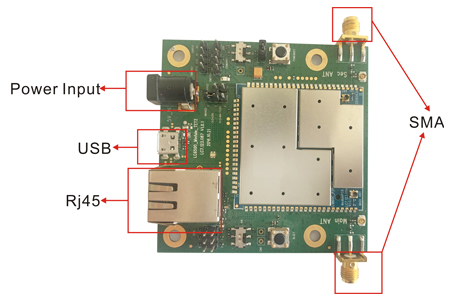

Wireless NLOS Broadband Video Data Wireless Radio PCB Module
Reviews & Ratings
Model: FD6100
FD6100 adopts OFDM (Orthogonal Frequency Division Multiplexing) and MIMO (Multi-Input & Multi-Output) technologies to wireless video transmission for UGV and Robotics with multiple bandwidth (1.4Mhz/3 MHz/5 MHz/10 MHz/ 20MHz). It supports point to max 16 point to share 30Mbps bandwidth for real time HD video and two way digital data.
FD6100 adopts SOC chip to realize automatic frequency modulation to avoid anti-interference, low power consumption and small size to meet the requirements of HD video transmission.
Featrues
➢ Low-power, high-performance System-on-Chip (SoC)
➢ Support Point to multipoint wireless transmission
➢ The actual rate bandwidth is 30Mbps
➢ Base on 4G LTE technology adopting OFDM and MIMO to independently transmitting HD 1080P video
➢ Support any frequency band from 400Mhz-6Ghz
➢ Internal security for mission-critical applications such as Industrial IoT, defense, and tactical communications systems
Applications
➢Public PtMP safety networks
➢Tactical communications
➢Unmanned land vehicles wireless video transmission
Specification
| Name | Specifications |
| Modulation | QPSK, 16QAM, 64QAM |
| Dimension | 45*43.4*3mm |
| Interface |
UART*2 USB*1 HSIC*1 12C*1 GPIO*6 JTAG*1 |
| Frequency |
Default: 806-826Mhz, 1427.9-1447.9Mhz, 2401.5-2481.5Mhz 400Mhz-6Ghz(on your request) |
| Bandwidth | 1.4Mhz/3Mhz/5Mhz/10Mhz/20Mhz |
| Transmitting RF Power |
23dBm/25dBm(default) ≥33dBm(On your request) |
| Data Rate | 30Mbps |
| Receiving Sensitivity |
2.4Ghz: -106dBm@3Mhz, -104dBm@5Mhz, -102dBm@10Mhz, -99dBm@20Mhz 1.4Ghz: -108dBm@3Mhz, -103dBm@5Mhz, -103dBm@10Mhz, -100dBm@20Mhz 800Mhz: -106dBm@3Mhz, -104dBm@5Mhz, -102dBm@10Mhz, -99dBm@20Mhz |
| Transmission Range | 2-20km |
| Delay |
Transmission delay from slave node to master≤200ms(USB/HSIC data transmission) Air Interface delay<10ms |
| Power | DC3.7-4.35V |
| Working Current |
Send: 600-700mA Receive: 500-600mA |
| Storage Temperature | -40℃~+85℃ |
| Working Temperature | -20℃~+75℃ |
