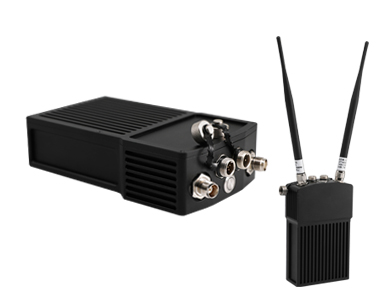

Model: FD6700
FD6700 is a 2×2 MIMO broadband mesh radio based on mature SOC chipset and TD-LTE wireless communication standard to establish a self-forming and self-healing network between different points such as soldiers, vehicles and UAVs. This centerless network is capable of transporting video and data communications for high-stakes industries like military and law enforcement. The small size coupled with low power consumption is ideal for use in portable and embedded applications.

Product Features

COFDM

➢Auto link adaptation to continually optimize throughput in dynamic environments

➢Exceptional Multipath and NLOS performance

➢Enhanced mobility for high-speed platforms

➢3, 5, 10, and 20MHz bandwidth modes

MOBILE AD HOC NETWORKING (MANET)

➢2X2 MIMO RADIO

➢Self-healing/self-forming mesh

➢Single frequency Time Division Duplexing (TDD)

➢Based on SOC chipset and TD-LTE wireless communication standard

➢Strong anti-interference ability: Automatic frequency hopping

➢Centerless network supports 32nodes in a single network

➢Long range for transmission: 17km for one hop

➢All topologies supported including linear, star, mesh and hybrid

Additional Features

➢Intelligent Routing: The network automatically switches routers based on the sending and receiving data size and channel quality.

➢Samll size and light weight is ideal for portable and embeded application.

➢IP67 construction for outdoor use

➢1 x Ethernet, 2 x USB, 1 x RS232, 2 x Antenna interfaces

➢4GB ROM+4Gb RAM/8GB ROM+8Gb RAM

Specification
